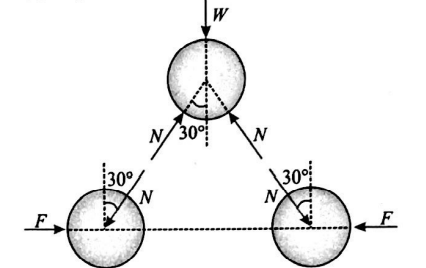

Q. Two smooth cylindrical bars weighing $W N$ each lie next to each other in contact. A similar third bar is placed over the two bars as shown in figure. Neglecting friction, the minimum horizontal force on each lower bar necessary to keep them together is

Laws of Motion Report Error

A

$\frac{W}{2}$

B

$E W$

C

$\frac{W}{\sqrt{3}}$

D

$\frac{W}{2 \sqrt{3}}$

Solution:

For upper cylinder

$2 N \cos 30^{\circ}=W$ ...(i)
For lower block
$N \cos 60^{\circ}=F$ ...(ii)
From (i) & (ii)
$\frac{2 \cos 30^{\circ}}{\cos 60^{\circ}}=\frac{W}{F}$
$\Rightarrow F=\frac{W}{2 \sqrt{3}}$
