  4. Find the friction force between the blocks in the figure-2.173:

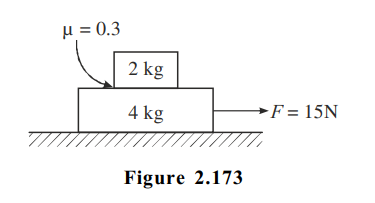

Q. Find the friction force between the blocks in the figure-$2.173$:Physics Question Image

Laws of Motion Report Error

Solution:

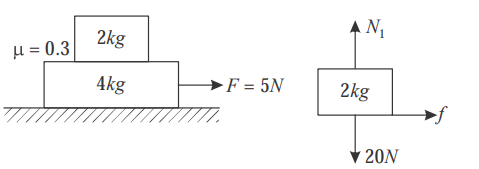

Limiting friction between blocks is
$f_{\max } =\mu N_{1}$
$=0.3 \times 20$
$=6 \,N$
To start sliding between blocks we use
$f_{\max }=2\left(\frac{F}{6}\right)=6$
$\Rightarrow F=18 N$
$\Rightarrow$ at $F=15 N$ both blocks move together at
$a=\frac{F}{6}=\frac{5}{2} m / s ^{2}$
$\Rightarrow f=2 a=2 \times \frac{5}{2}=5 \,N$
