Question

Which of the following curve is in accordance with Freundlieh adsorption isotherm ?

• A.
• B.
• C.
• D.

Answer 1

Answer: (C)

According to Freundlich adsorption isotherm at dynamic equilibrium

$\frac{x}{m}\propto P^{1/n}\frac{x}{m}\propto K_{P^{1/n}}$

where, $\frac{x}{m}$ = Adsorption capacity,

$p$ = pressure

and K, n are constant for a given adsorbate and absorbent at particular temperature.

$\Rightarrow log\frac{x}{m}=logK+\frac{1}{n}logP$

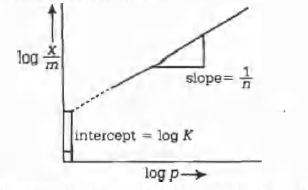

A graph between log$\frac{x}{m}$ against log p give a m straight line with slope equal to $\frac{1}{n}$ and ordinate intercept equal to log K.
