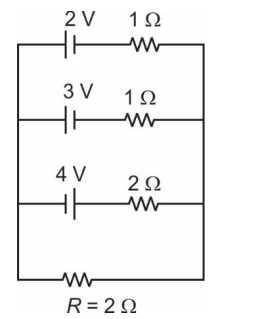

Three cells of emf 2 V , 3 V and 4 V are connected in parallel as shown in the figure. If their internal resistances are 1 Ω, 1 Ω and 2 Ω respectively, then the current through the external load resistance R is

Question

Three cells of emf 2 V , 3 V and 4 V are connected in parallel as shown in the figure. If their internal resistances are 1 Ω, 1 Ω and 2 Ω respectively, then the current through the external load resistance R is (A) 0.5 A (B) 0.2 A (C) 0.4 A (D) 1.0 A

Tardigrade Admin · Accepted Answer

(Ee q/Re q)=(E1/r1)+(E2/r2)+(E3/r3) Ee q=(2+3-2) × (2/5) = (6/5) V i= ((6/5)/(2)5+2)=((6/5)/(12)5) = 0.5 A

Q. Three cells of emf $2 V, 3 V$ and $4 V$ are connected in parallel as shown in the figure. If their internal resistances are $1 Ω, 1 Ω$ and $2 Ω$ respectively, then the current through the external load resistance $R$ is

0.5 A

0.2 A

0.4 A

1.0 A

$\frac{E _{e q}}{R _{e q}} = \frac{E _{1}}{r _{1}} + \frac{E _{2}}{r _{2}} + \frac{E _{3}}{r _{3}}$
$E_{e q} = (2 + 3 - 2) \times \frac{2}{5}$
$= \frac{6}{5} V$
$i = \frac{\frac{6}{5}}{\frac{2}{5} + 2} = \frac{\frac{6}{5}}{\frac{12}{5}}$
$= 0.5 A$
