Question

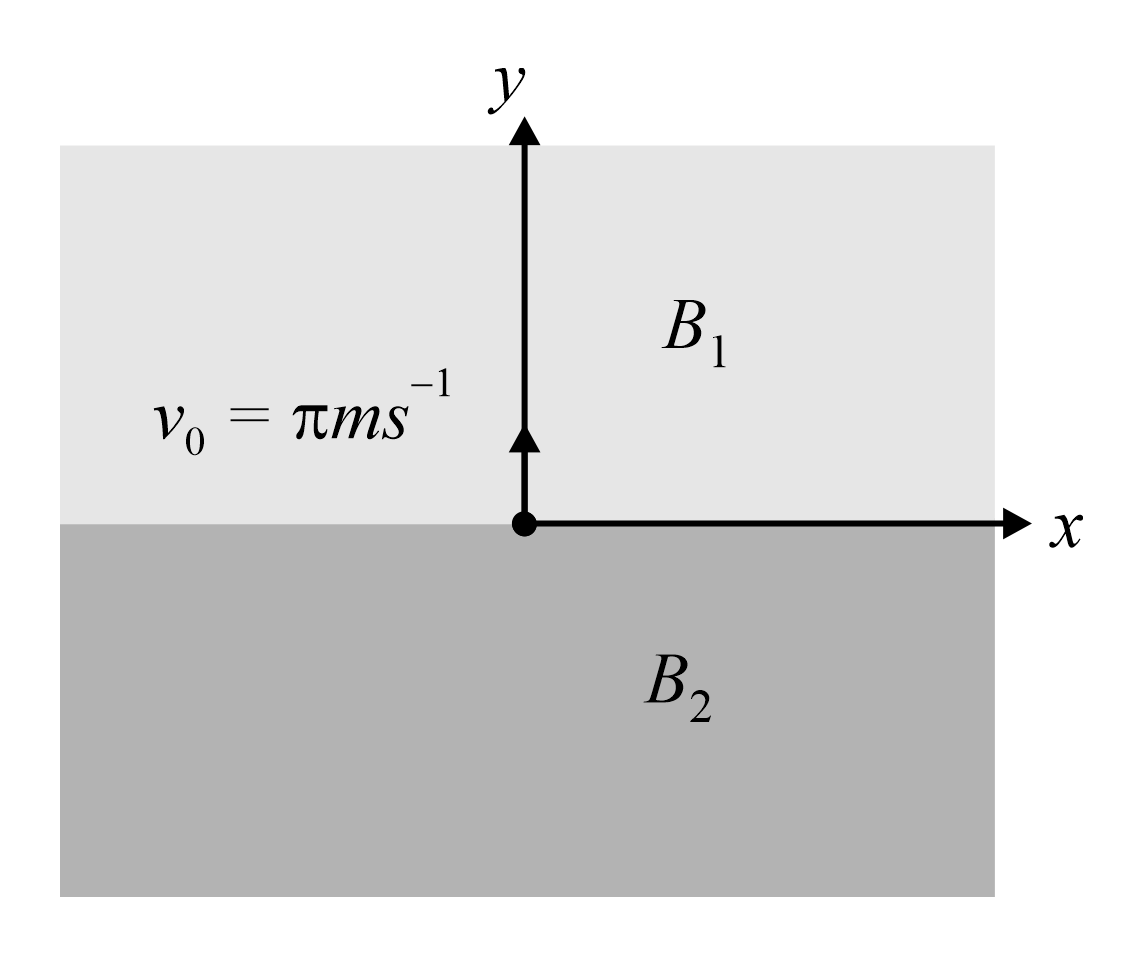

In the xy – plane, the region $y>0$ has a uniform magnetic field $B_1\hat{k}$ and the region $y<0$ has another uniform magnetic field $B_2\hat{k}$ . A particle with a speed $v_0=\pi m{s}^{-1}$ at $t=0$ is projected in positive y-axis from the origin as shown in the figure. Neglect gravity in this problem. Let $t=T$ be the time when the particle crosses the x-axis from below for the first time. If $B_2=4B_1$ , the average speed of the particle, in $m{s}^{-1}$ , along the x-axis in the time interval $T$ is ________.

Answer 1

Answer: 2

$(i)$ Average speed along x - axis

$⟨V_x⟩=\frac{\int |\overrightarrow{v_x}|dt}{\int dt}=\frac{d_1+d_2}{t_1+t_2}$
$(ii)$ We have,

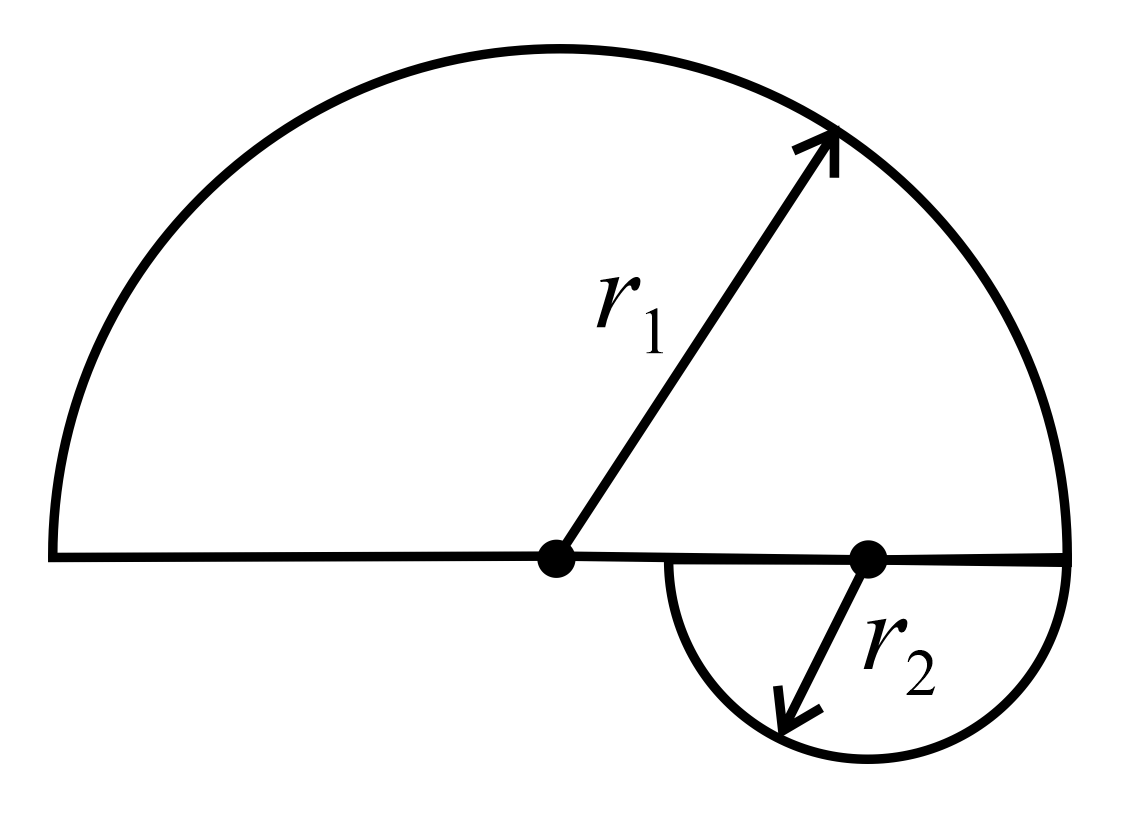

$r_1=\frac{mv}{q{B}_1},r_2=\frac{mv}{q{B}_2}$
Since, $B_1=\frac{B_2}{4}$
$\therefore r_1=4r_2$
Time in $B_1\Rightarrow \frac{\pi m}{q{B}_1}=t_1$
Time in $B_2\Rightarrow \frac{\pi m}{q{B}_2}=t_2$
Total distance along x - axis $d_1+d_2=2r_1+2r_2=2\left(r_1+r_2\right)=2\left(5r_2\right)$
Total time $T=t_1+t_2=5t_2$
$\therefore$ Average speed $=\frac{10r_2}{5t_2}=\frac{2mv}{q{B}_2}\times \frac{q{B}_2}{\pi m}=2$
