Question

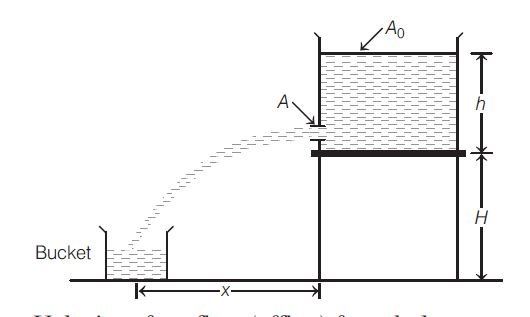

Consider the configuration of a stationary water tank of cross-section area $A_0$ and a small bucket as shown in figure below;

What should be the speed $v$ of the bucket, so that the water leaking out of a hole of cross-section area $A$ (as shown) from the water tank does not fall outside the bucket?
(Take, $h=5m,H=5m,g=10m/s^2,A=5c{m}^2$ and $A_0=500c{m}^2)$

• A. 1 m/s
• B. 0.5 m/s
• C. 0.1 m/s
• D. 0.05 m/s

Answer 1

Answer: (C)

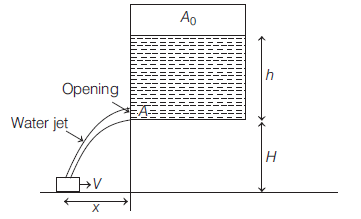

Velocity of outflow (efflux) from hole
$=\sqrt{2gh.}$
Range of water jet,
$x=\sqrt{2gh}\times$ Time of fall
$=\sqrt{2gh}\times \sqrt{\frac{2H}{g}}=2\sqrt{hH}$
Velocity $v$ of bucket is
$\upsilon =\frac{dx}{dt}=\frac{d}{dt}2\sqrt{hH}$
$2\sqrt{H}.\frac{d\sqrt{h}}{dt}$
$\Rightarrow \upsilon =2\sqrt{H}.\frac{1}{2\sqrt{h}}.\frac{dh}{dt}$
$=\sqrt{\frac{H}{h}}.\frac{dh}{dt}\dots \left(i\right)$
Now, using equation of continuity at area $A_0$ and area $A$ we have
$A{\upsilon }_1=A_{0}V$
where, ${\upsilon }_1=\sqrt{2gh}$
and $V=\frac{dh}{dt}.$
$\therefore A\sqrt{2gh}=A_0\left(\frac{dh}{dt}\right)$
Substituting for $\frac{dh}{dt}$ from Eq $\left(i\right),$ we get
$\upsilon =\sqrt{\frac{H}{h}}.\frac{A}{A}.\sqrt{2gh}$
$=\sqrt{\frac{5}{5}}.\left(\frac{5}{500}\right).\sqrt{2\times 10\times 5}$
$=\frac{1}{10}m{s}^{-1}$
$=0.1m{s}^{-1}$
