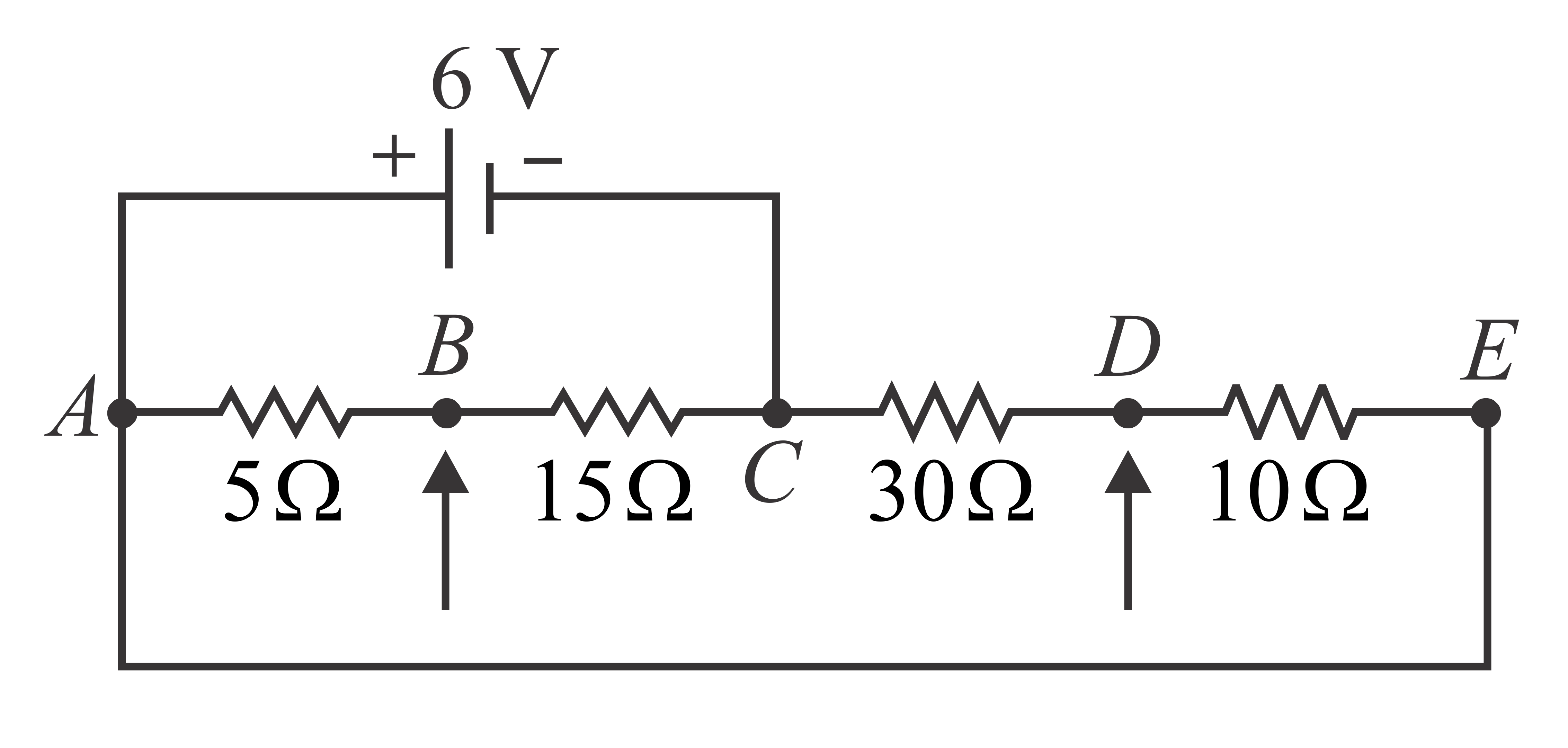

What is the potential difference between the terminals B and D in the given figure? (Consider battery to be ideal with emf ϵ =6V )

Question

What is the potential difference between the terminals B and D in the given figure? (Consider battery to be ideal with emf ϵ =6V ) <img class="img-fluid question-image" alt="Question" src="https://cdn.tardigrade.in/q/nta/p-rrguproijd8db39o.jpg" /> (A) Zero (B) 1.5 V (C) 2 V (D) 3 V.

Tardigrade Admin · Accepted Answer

The given figure is a circuit of balanced Wheatstone bridge. <img class="img-fluid question-image" alt="Solution" src="https://cdn.tardigrade.in/q/nta/p-rrguproijd8ddtjn.jpg" /> Point B and D would be at the same potential, i.e., VB-VD=0 volt

Q. What is the potential difference between the terminals $B$ and $D$ in the given figure?
(Consider battery to be ideal with emf $ϵ = 6 V$ )

Zero

$1.5 V$

$2 V$

$3 V .$

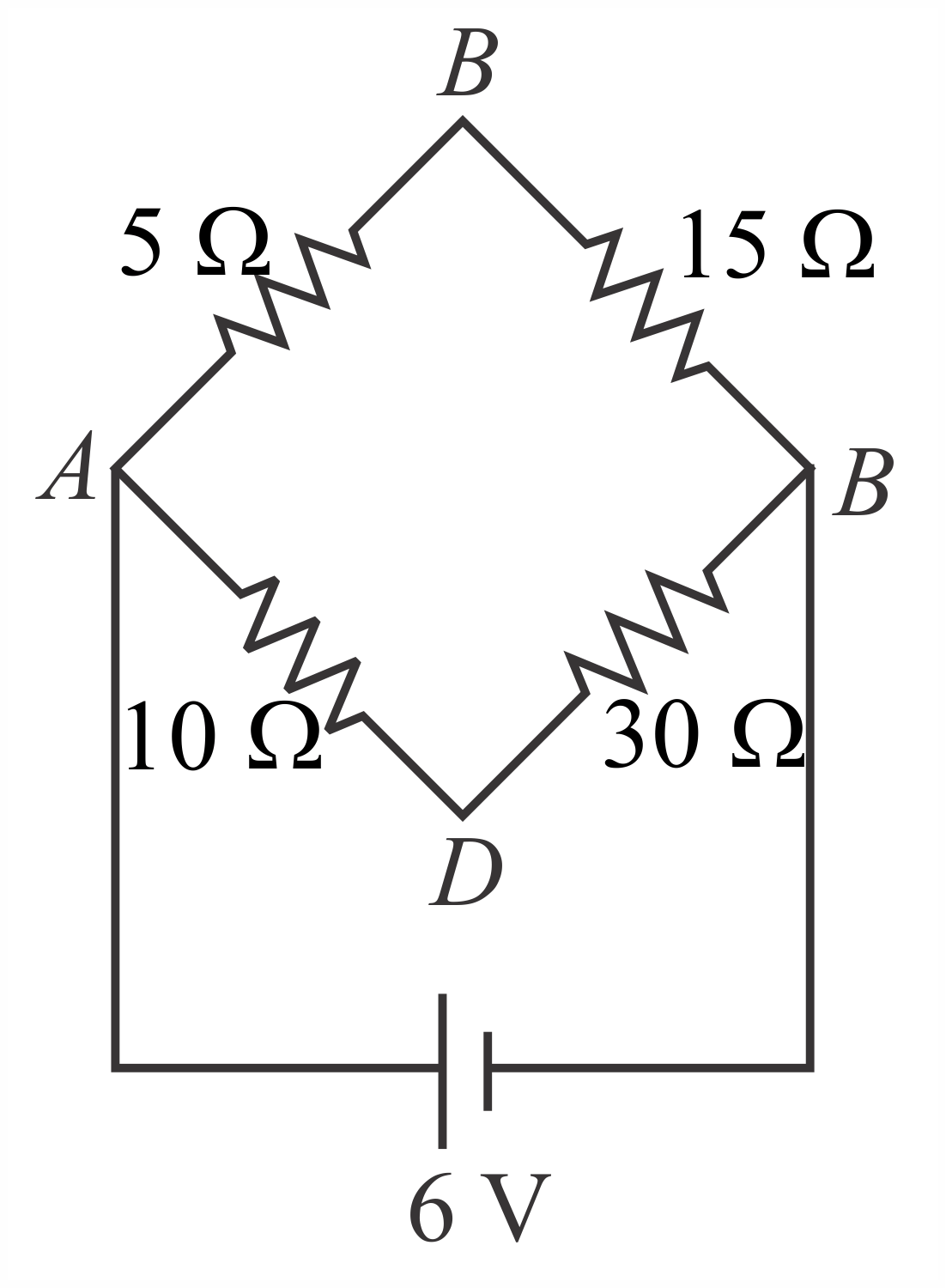

The given figure is a circuit of balanced Wheatstone bridge.

Point $B$ and $D$ would be at the same potential,
$i . e ., V_{B} - V_{D} = 0$ volt
