The plot given below is of the average power delivered to an LRC circuit versus frequency. The quality factor of the circuit is :

Question

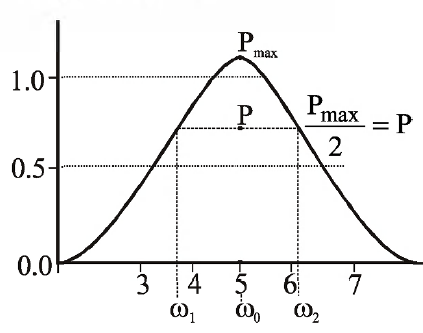

The plot given below is of the average power delivered to an LRC circuit versus frequency. The quality factor of the circuit is : (A) 5.0 (B) 2.0 (C) 2.5 (D) 0.4

Tardigrade Admin · Accepted Answer

Quality factor of the circuit =(ω0/ω2-ω1 )=(5/2.5)=2.0

Q. The plot given below is of the average power delivered to an LRC circuit versus frequency. The quality factor of the circuit is :

$5.0$

$2.0$

$2.5$

$0.4$

Quality factor of the circuit
$= \frac{ω _{0}}{ω _{2} - ω _{1}} = \frac{5}{2.5} = 2.0$
