The minimum NOR gates are required to make one NAND gate are

Question

The minimum NOR gates are required to make one NAND gate are (A) 1 (B) 2 (C) 3 (D) 4

Tardigrade Admin · Accepted Answer

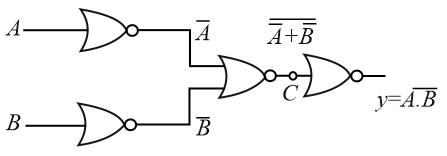

Three NOR gates form an AND gate, another NOR gate which behaves as NOT gate, And the combination of the two sets will form NAND gate. <img class="img-fluid question-image" alt="Solution" src="https://cdn.tardigrade.in/q/nta/p-2i2pbgheuza31igh.jpg" />

Q. The minimum $NOR$ gates are required to make one $N A N D$ gate are

$1$

$2$

$3$

$4$

Three $NOR$ gates form an $A N D$ gate, another $NOR$ gate which behaves as $NOT$ gate, And the combination of the two sets will form $N A N D$ gate.
