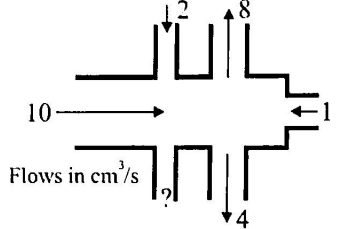

The figure shows volume flow rates (in cm 3 / s ) for all but one tube. What is the volume flow rate through the unmarked tube ? ls the flow direction in or out?

Question

The figure shows volume flow rates (in cm 3 / s ) for all but one tube. What is the volume flow rate through the unmarked tube ? ls the flow direction in or out? (A) 3 cm 3 / s out (B) 1 cm 3 / s out (C) 2 cm 3 / s out (D) 1 cm 3 / s in

Tardigrade Admin · Accepted Answer

Correct answer is (b) 1 cm 3 / s out

Q. The figure shows volume flow rates (in $c m^{3} / s$ ) for all but one tube. What is the volume flow rate through the unmarked tube ? ls the flow direction in or out?

$3 c m^{3} / s$ out

$1 c m^{3} / s$ out

$2 c m^{3} / s$ out

$1 c m^{3} / s$ in

Correct answer is (b) $1 c m^{3} / s$ out

Q. The figure shows volume flow rates (in cm3/s ) for all but one tube. What is the volume flow rate through the unmarked tube ? ls the flow direction in or out?

3cm3/s out

1cm3/s out

2cm3/s out

1cm3/s in
