Question

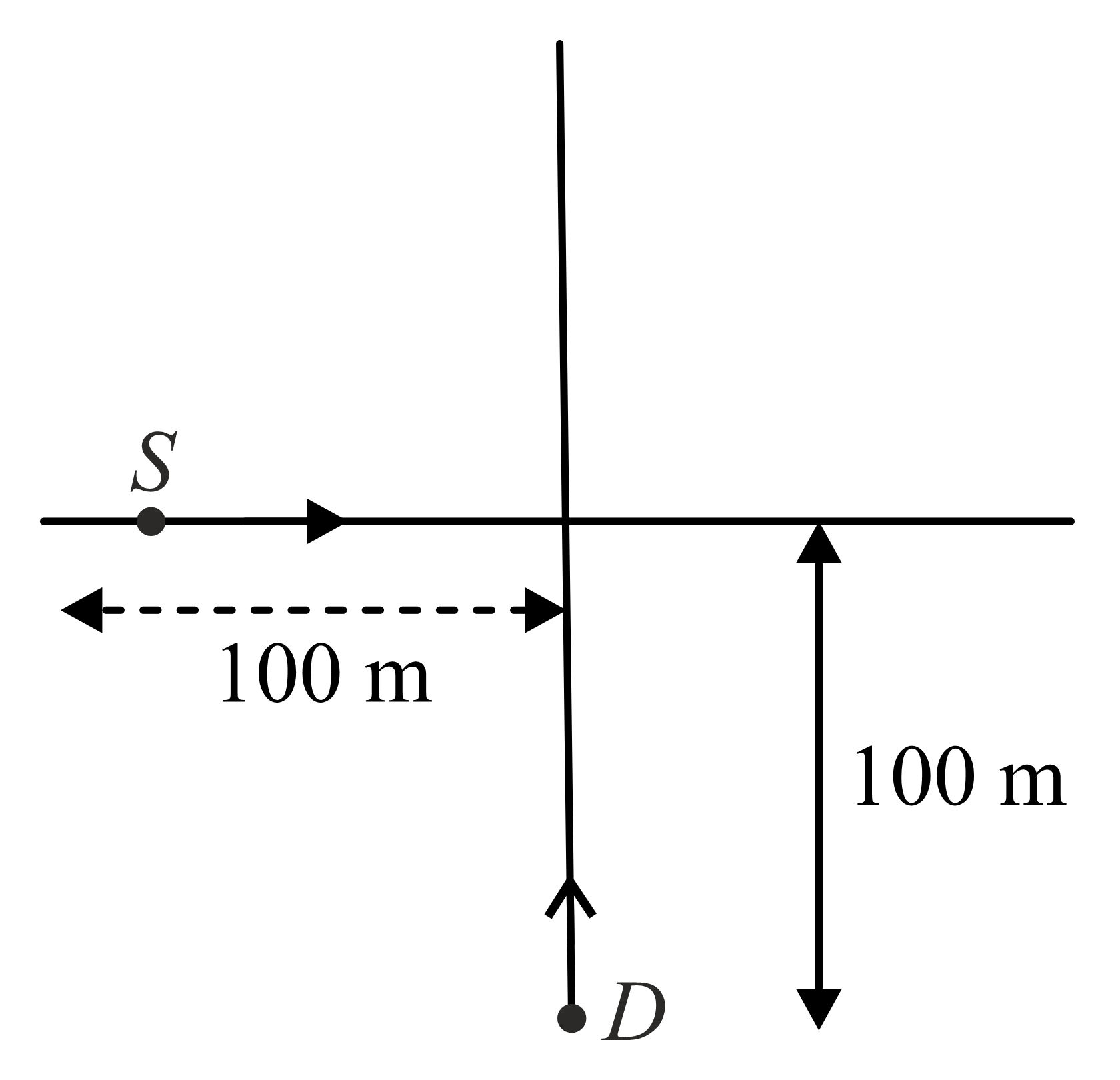

The figure shows the location of a source and detector at time $t=0$ . The source and detector are moving with velocities $v_S=5\hat{i}m{s}^{-1}$ and $v_D=10\hat{j}m{s}^{-1}$ respectively. The frequency of signals received by the detector at the moment when the source crosses the origin is(the frequency of the source is $100Hz$ , velocity of sound is $330m{s}^{-1}$ )

• A. $97Hz$
• B. $47Hz$
• C. $90Hz$
• D. $60Hz$

Answer 1

Answer: (A)

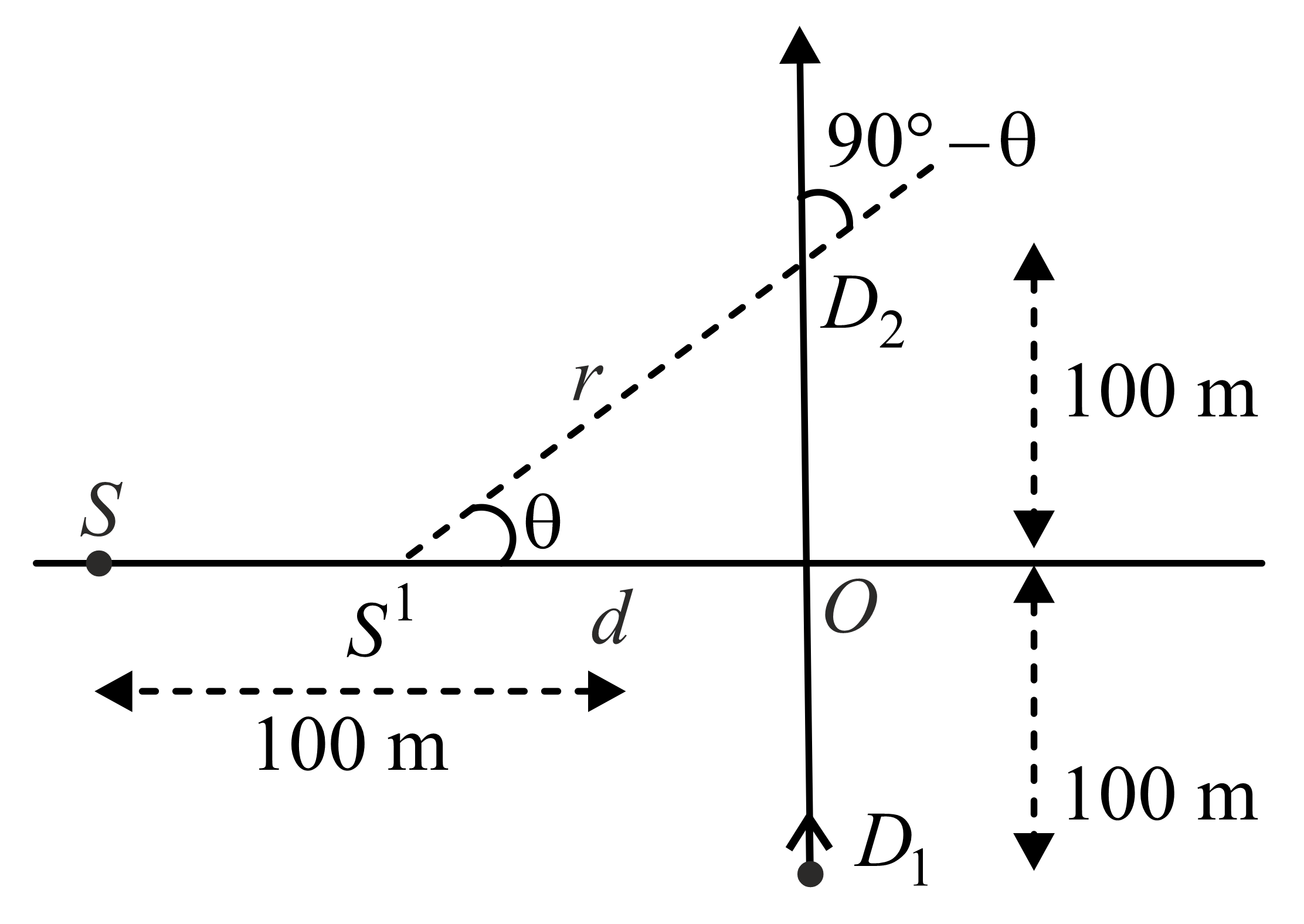

Time taken by '$S$' to travel from $S$ to $O=20s$
In this time detector goes from $D_1$ to $D_2$
The signal received by the detector at $t=20s$ is not that produced by the source at '$O$' but produced from a position $S_1$ prior to '$O$'
$\frac{r}{v}=\frac{d}{v_s}cos\theta =\frac{d}{r}=\frac{v_s}{v}=\frac{5}{330}=\frac{1}{66}$
$sin\theta =\sqrt{1-(\frac{1}{66}{)}^2}\approx 1$
$\Rightarrow f_D=f\left(\frac{v-v_{0}sin\theta }{v-v_{s}cos\theta }\right)$
$=100\left(\frac{330-10}{330-\frac{5}{66}}\right)=97Hz$
