The equivalent capacitance between the points A and B is

Question

The equivalent capacitance between the points A and B is <img class="img-fluid question-image" alt="Question" src="https://cdn.tardigrade.in/q/nta/p-9xfwic3jnkwc6ylf.jpg" /> (A) 2C0 (B) C0 (C) 4C0 (D) 6C0

Tardigrade Admin · Accepted Answer

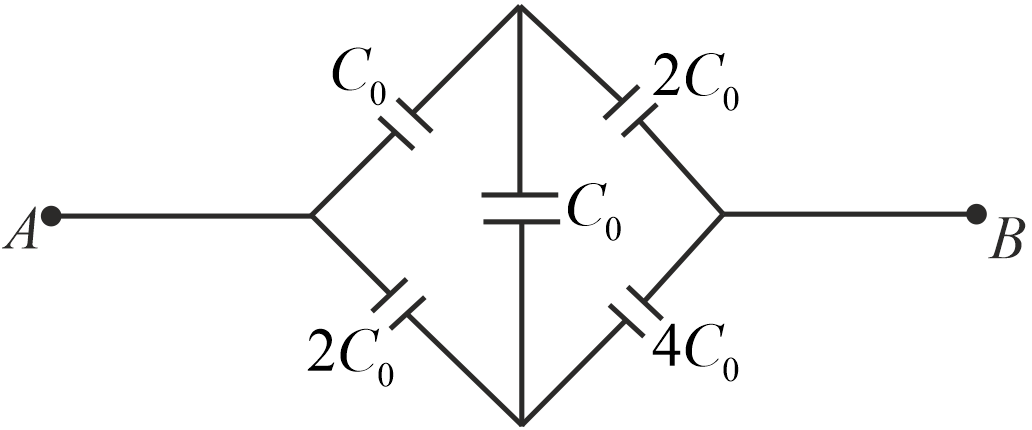

Rearranging the given circuit as, Solution

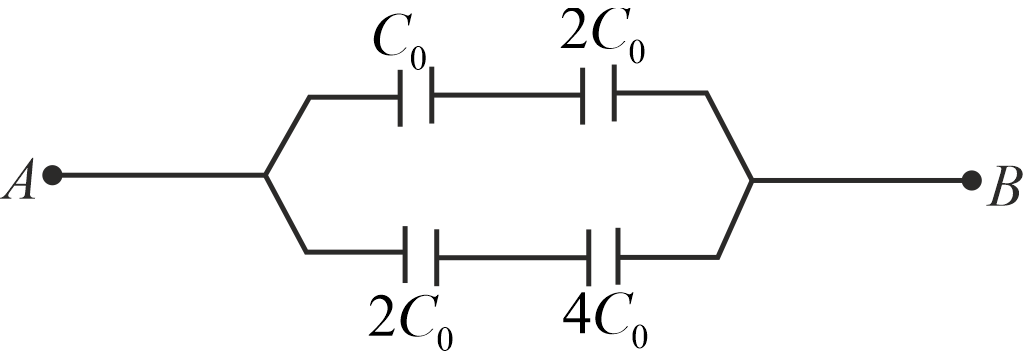

Now, the arrangement seems to follow the principle of the Wheatstone bridge, again simplifying the circuit, Solution

Calculating the equivalent capacitance using basic concepts of series and parallel combination of capacitors. Ce q=(2 C0/3)+(4 C0/3)=2C0

Q. The equivalent capacitance between the points $A$ and $B$ is

$2 C_{0}$

$C_{0}$

$4 C_{0}$

$6 C_{0}$

Q. The equivalent capacitance between the points A and B is

2C0​

C0​

4C0​

6C0​

Rearranging the given circuit as, Now, the arrangement seems to follow the principle of the Wheatstone bridge, again simplifying the circuit, Calculating the equivalent capacitance using basic concepts of series and parallel combination of capacitors. Ceq​=32C0​​+34C0​​=2C0​
