The combination of gates shown below yields

Question

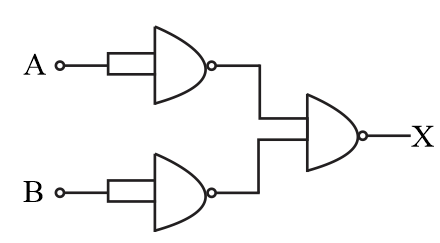

The combination of gates shown below yields <img class="img-fluid question-image" alt="Question" src="https://cdn.tardigrade.in/q/nta/p-joz6nt7c5gxe.png" /> (A) OR gate (B) NOT gate (C) XOR gate (D) NAND gate

Tardigrade Admin · Accepted Answer

The final boolean expression is, X= overline( barA ⋅ barB)= barA+ barB=A+B ⇒ OR gate

Q. The combination of gates shown below yields

OR gate

NOT gate

XOR gate

NAND gate

The final boolean expression is,
$X = \overline{(\overset{ˉ}{A} \cdot \overset{ˉ}{B})} = \overset{ˉ}{A} + \overset{ˉ}{B} = A + B \Rightarrow$ OR gate

Q. The combination of gates shown below yields

OR gate

NOT gate

XOR gate

NAND gate

The final boolean expression is, X=(Aˉ⋅Bˉ)​=Aˉ+Bˉ=A+B⇒ OR gate

The final boolean expression is,
$X = \overline{(\overset{ˉ}{A} \cdot \overset{ˉ}{B})} = \overset{ˉ}{A} + \overset{ˉ}{B} = A + B \Rightarrow$ OR gate
