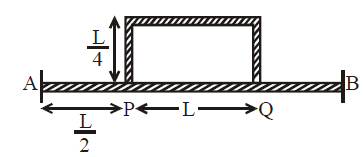

Temperature difference of 120°C is maintained between two ends of a uniform rod AB of length 2L. Another bent rod PQ, of same cross section as AB and length (3L/2) , is connected across AB (See figure). In steady state, temperature difference between P and Q will be close to :

Question

Temperature difference of 120°C is maintained between two ends of a uniform rod AB of length 2L. Another bent rod PQ, of same cross section as AB and length (3L/2) , is connected across AB (See figure). In steady state, temperature difference between P and Q will be close to : (A) 60° C (B) 75° C (C) 35° C (D) 45° C

Tardigrade Admin · Accepted Answer

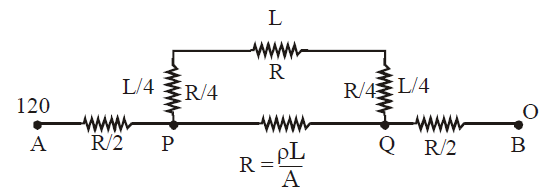

(Δ T/Req) = I = ((120)5/8R) = (120×5/8R) Δ TPQ = (120 ×5/8R) ×(3/5)R = (360/8) = 45°C
