Six capacitors each of capacitance of 2μF are connected as shown in the figure. The effective capacitance between A and B is:

Question

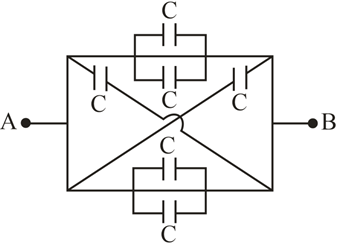

Six capacitors each of capacitance of 2μF are connected as shown in the figure. The effective capacitance between A and B is: <img class="img-fluid question-image" alt="Question" src="https://cdn.tardigrade.in/q/nta/p-iror10rx4e1iyt9i.jpg" /> (A) 12μF (B) 8/3μF (C) 3μF (D) 6μ F

Tardigrade Admin · Accepted Answer

Given circuit can be reduced to. <img class="img-fluid question-image" alt="Solution" src="https://cdn.tardigrade.in/q/nta/p-iror10rx4e1ienxm.jpg" /> ⇒ CAB=6C=12μF

Q. Six capacitors each of capacitance of $2 μ F$ are connected as shown in the figure. The effective capacitance between $A$ and $B$ is:

$12 μ F$

$8/3 μ F$

$3 μ F$

$6 μ F$

Given circuit can be reduced to.

$\Rightarrow C_{A B} = 6 C = 12 μ F$
