Out of the following graphs, which graph shows the correct relation (graphical representation) for LC parallel resonant circuit ?

Question

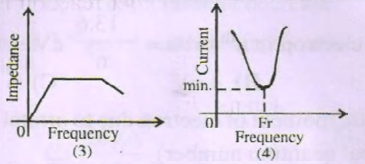

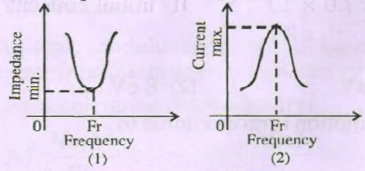

Out of the following graphs, which graph shows the correct relation (graphical representation) for LC parallel resonant circuit ? (A) 1 (B) 2 (C) 3 (D) 4

Tardigrade Admin · Accepted Answer

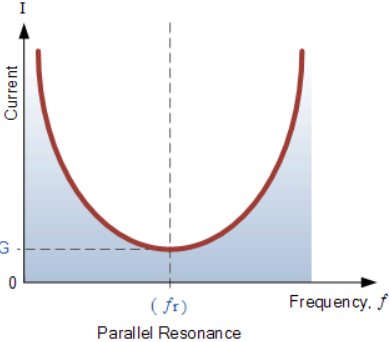

At resonance ω=(1/√ LC ) f =(1/2 π √ LC ) At resonance the impedance is maximum and frequency and current will be minimum . <img class="img-fluid question-image" alt="image" src="https://cdn.tardigrade.in/img/question/physics/5a1df8f3972af37a766d2e221a8b1fc6-.png" />

Q. Out of the following graphs, which graph shows the correct relation (graphical representation) for LC parallel resonant circuit ?

1

2

3

4

At resonance $ω = \frac{1}{L C}$
$f = \frac{1}{2 π L C}$
At resonance the impedance is maximum and frequency and current will be minimum .

Q. Out of the following graphs, which graph shows the correct relation (graphical representation) for LC parallel resonant circuit ?

1

2

3

4

At resonance ω=LC​1​ f=2πLC​1​ At resonance the impedance is maximum and frequency and current will be minimum .

At resonance $ω = \frac{1}{L C}$
$f = \frac{1}{2 π L C}$
At resonance the impedance is maximum and frequency and current will be minimum .
