Question

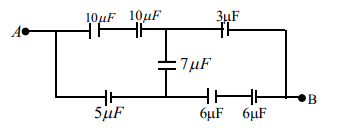

In the figure, the equivalent capacitance between $A$ and $B$ is

• A. $3.75\mu F$
• B. $5.25\mu F$
• C. $6.5\mu F$
• D. $10.5\mu F$

Answer 1

Answer: (A)

Circuit is a wheat stone network in balance condition. $C_{AB}=3.75\mu F$
