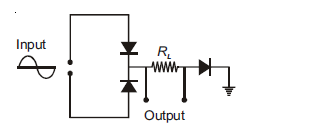

In the circuit shown, the input waveform is given. Which of the following correctly gives the output waveform across RL ?

Question

In the circuit shown, the input waveform is given. Which of the following correctly gives the output waveform across RL ? (A)  (B)  (C)  (D)

Tardigrade Admin · Accepted Answer

The circuit diagram is like a full wave rectifier and current through RL flows only in one direction.
