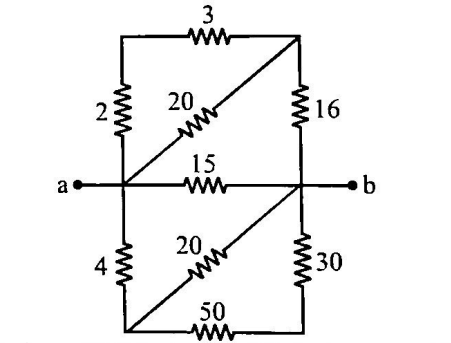

In Fig. denote the numerical values of resistors in SI. The total resistance of the circuit

Question

In Fig. denote the numerical values of resistors in SI. The total resistance of the circuit (A) 12 ohms (B) 24 ohms (C) 6 ohms (D) 2 ohms

Tardigrade Admin · Accepted Answer

(1/20)+(1/20)+(1/15)=(6+4/60)=6 Ω
