Question

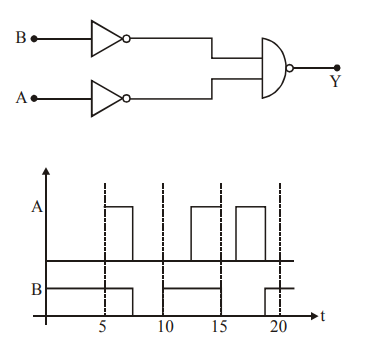

Identify the correct output signal $Y$ in the given combination of gates (as shown) for the given inputs $A$ and $B$.

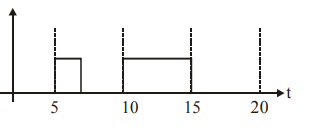

• A.

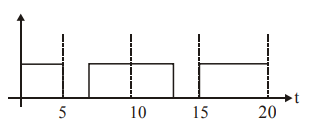

• B.

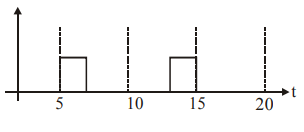

• C.

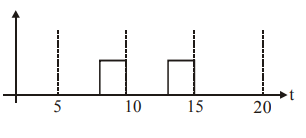

• D.

Answer 1

Answer: (C)

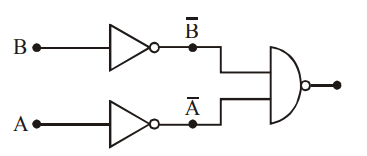

$y=\overline{\bar{A}.\bar{B}}=\overline{\bar{A}}+\overline{\bar{B}}=A+B$
