Question

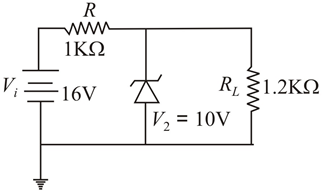

For the given circuit the power dissipated by Zener diode is

• A. $20W$
• B. $15W$
• C. $10W$
• D. $0W$

Answer 1

Answer: (D)

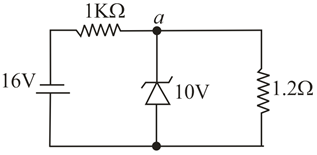

Current flowing through load resistor is given as $i=\frac{16}{1000+1200}=7.2mA$
Voltage drop across the load resistor, $V_{ab}=i{R}_L=7.2\times 10^{-3}\times 1200=8.72V$ .
As $V_{ab}<10V$
So, breakdown of zener diode does not occur and no current flows through it.
So, $I_z=0$ and $P_z=I_Z{V}_z=0W$
