Question

Area bounded by the lines $y=|x|-2$ and $y=1-|x-1|$ is equal to

• A. 4 sq. units
• B. 6 sq. units
• C. 2 sq. units
• D. 8 sq. units

Answer 1

Answer: (A)

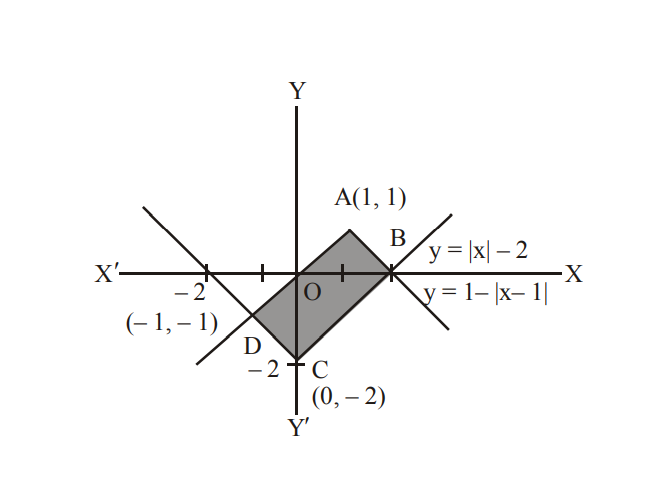

We have, $y=-x-2...(i)$
$y=x-2...(ii)$
$y=2-x...(iii)$
$y=x...(iv)$
Solving (iii) and (iv), we get $A(1,1)$
Solving (i) and (iv), we get $D(-1,-1)$
Required area $=$ area of $\Delta AOB+$ area of $\Delta OCB+$ area of $\Delta OCD$

Area of $\Delta AOB=\underset{0}{\overset{1}{\int }}xdx+\underset{1}{\overset{2}{\int }}(2-x)dx$
$={\left[\frac{x^2}{2}\right]}_0^1+{\left[2x-\frac{x^2}{2}\right]}_1^2=\frac{1}{2}+\left[4-\frac{4}{4}\right]-\left[2-\frac{1}{2}\right]$
$=\frac{1}{2}+\frac{4}{2}-\frac{3}{2}=1$ sq. unit
Area of $\Delta OCB=\left|\underset{0}{\overset{2}{\int }}(x-2)dx\right|$
$=\left|{\left[\frac{x^2}{2}-2x\right]}_0^2\right|=2sq.$ units
Area of $\Delta OCD=\mid \underset{-1}{\overset{0}{\int }}(-x-2)dx-\underset{-1}{\overset{0}{\int }}xdx$
$=\left|-{\left[\frac{x^2}{2}+2x\right]}_{-1}^0-{\left[\frac{x^2}{2}\right]}_{-1}^0\right|=1$ sq. unit
Required area $=1+2+1=4$ sq. units
