Q. An uncharged sphere of metal is placed inside a charged parallel plate capacitor. The lines of force will look like .........

2686 271 KCETKCET 2004Electrostatic Potential and Capacitance Report Error

A

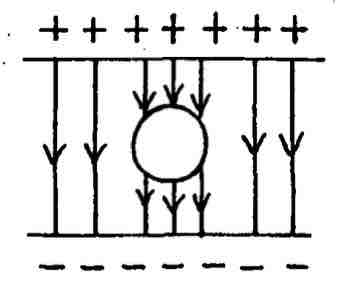

Option 1 Image

18%

B

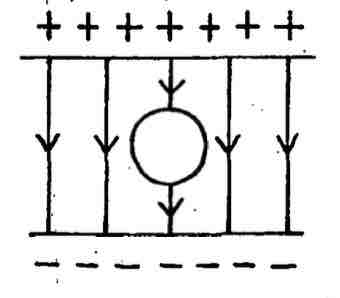

Option 2 Image

16%

C

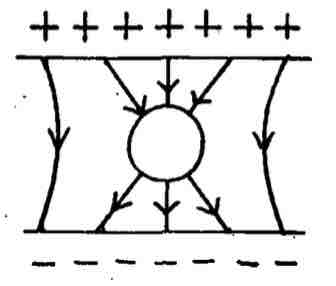

Option 3 Image

54%

D

Option 4 Image

12%

Solution:

Normal to the conductor
