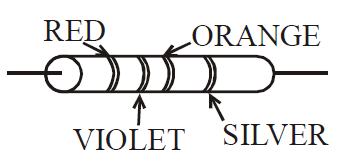

A resistance is shown in the figure. Its value and tolerance are given respectively by :

Question

A resistance is shown in the figure. Its value and tolerance are given respectively by : (A) 27 K Ω , 20 % (B) 270 KΩ , 5 % (C) 270 KΩ , 10 % (D) 27 KΩ , 10 %

Tardigrade Admin · Accepted Answer

Color code: Red violet orange silver R = 27 × 103 Ω ± 10 % = 27 K Ω ± 10 %

Q. A resistance is shown in the figure. Its value and tolerance are given respectively by :

$27 K Ω, 20%$

$270 K Ω, 5%$

$270 K Ω, 10%$

$27 K Ω, 10%$

Color code :
Red violet orange silver
$R = 27 \times 1 0^{3} Ω \pm 10%$
$= 27 K Ω \pm 10%$

Q. A resistance is shown in the figure. Its value and tolerance are given respectively by :

27KΩ,20%

270KΩ,5%

270KΩ,10%

27KΩ,10%

Color code : Red violet orange silver R=27×103Ω±10% =27KΩ±10%

$27 K Ω, 20%$

$270 K Ω, 5%$

$270 K Ω, 10%$

$27 K Ω, 10%$

Color code :
Red violet orange silver
$R = 27 \times 1 0^{3} Ω \pm 10%$
$= 27 K Ω \pm 10%$
