  4. A magnet N-S is suspended from a spring and when it oscillates, the magnet moves in and out of the coil C. Then, as magnet oscillates

Q. A magnet is suspended from a spring and when it oscillates, the magnet moves in and out of the coil . Then, as magnet oscillates Physics Question Image

 850  216 Electromagnetic Induction Report Error

Solution:

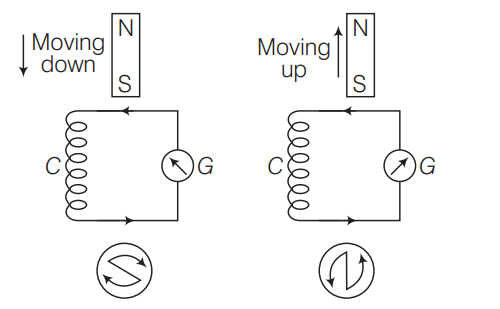

When the south-pole of a magnet is moved towards the coil, then by Lenz's law the face of coil, towards magnet becomes south-pole and the current flows clockwise to cancel change in the magnetic flux. So, to bring the magnet near to the coil, more work has to be done against the force of repulsion produced between them. So, the galvanometer shows deflection to the left. Now when the south-pole is moved away, current flows in anti-clockwise direction to make the face of the coil towards magnet, a north-pole.
Thus will try to attract the magnet. So, the galvanometer shows the deflection to the right. Since, of flux varies hence, amplitude will not be constant and will decrease.

Solution Image
