Question

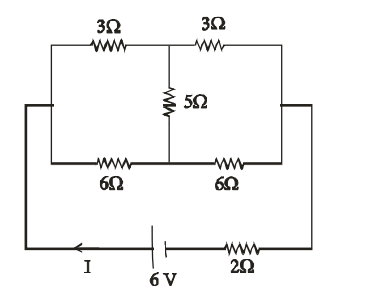

A battery of $6V$ is connected to the circuit as shown below. The current I drawn from the battery is :

• A. $1A$
• B. $2A$
• C. $\frac{6}{11}A$
• D. $\frac{4}{3}A$

Answer 1

Answer: (A)

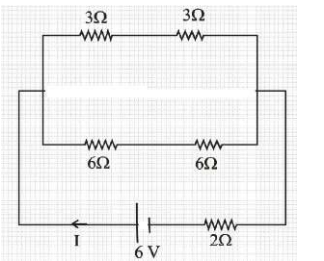

Balanced wheat stone bridge in circuit so there is no current in $5\Omega$ resistor so it can be removed from the circuit.

$R_{eq}=\frac{6\times 12}{6+12}+2$
$=\frac{6\times 12}{18}+2$
$R_{eq}=6\Omega$
$I=\frac{V}{R_{eq}}=\frac{6}{6}=1Amp$
