Question

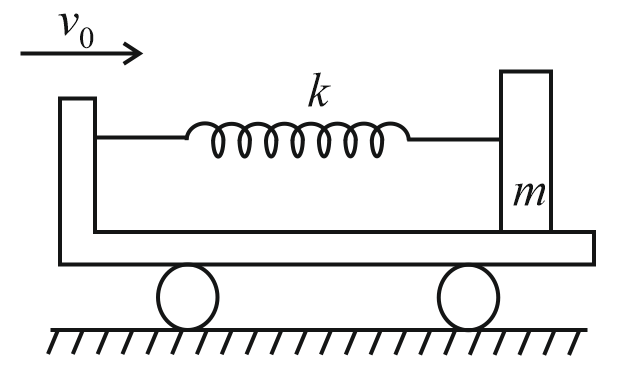

A block of mass $m$ is connected rigidly with a smooth wedge (plank) by a light spring of stiffness $k$. If the wedge is moved with constant velocity $v_0$, then find the work done by the external agent until the maximum compression of the spring.

• A. $m{v}_0^2$
• B. $2m{v}_0^2$
• C. $3m{v}_0^2$
• D. $2m{v}_0^3$

Answer 1

Answer: (A)

Let us take wedge $+$ spring $+$ block as a system. The forces responsible for performing work are spring force $kx$ $(\leftarrow )$ and the external force $F(\to )$.


Work Energy theorem for block + spring + plank relative to ground:
Applying work-energy theorem, we have $W_{\text{ext }}+W_{Sp}=\Delta K$
where $W_{sp}$ the total work done by the spring on wedge and block $-\frac{1}{2}k{x}^2$ and $\Delta K$
= change in KE of the block (because the plank does not change its kinetic
energy)
Then, $W_{\text{ext }}=\frac{1}{2}k{x}^2+\Delta K$
As the block was initially stationary and it will acquire a velocity $v_0$ equal to that of the plank at the time of maximum compression of the spring, the change in kinetic energy of the block relative to ground is
$\Delta K=\frac{1}{2}m{v}_0^2$
Substituting $\Delta K$ in the above equation, we have
$W_{\text{ext }}=\frac{1}{2}K{x}^2+\frac{1}{2}m{v}_0^2.......$(i)
Work Energy theorem for block $+$ spring $+$ plank relative to the plank $W_{\text{ext }}+W_{sp}=$ $\Delta K$ The plank moves with constant velocity, there is no pseudo-force acting on the block. $W_{\text{ext }}=0$ Then the net work done on the system (block + plank), due to the spring, can be given as
$W_{SP}=-\frac{1}{2}k{x}^2$
As the relative velocity between the observer (plank) and block decreases from $v_0$ to zero at the time of maximum compression of the spring, the change in kinetic energy of the block is $\Delta K=-\frac{1}{2}m{v}_0^2$.
Substituting $W_{sp}$ and $△K$ in above equation
$-\frac{1}{2}k{x}^2=-\frac{1}{2}m{v}_0^2....$ (ii)
From (i) & (ii)
$W_{\text{ext }}=\frac{1}{2}m{v}_0^2+\frac{1}{2}m{v}_0^2=m{v}_0^2$
